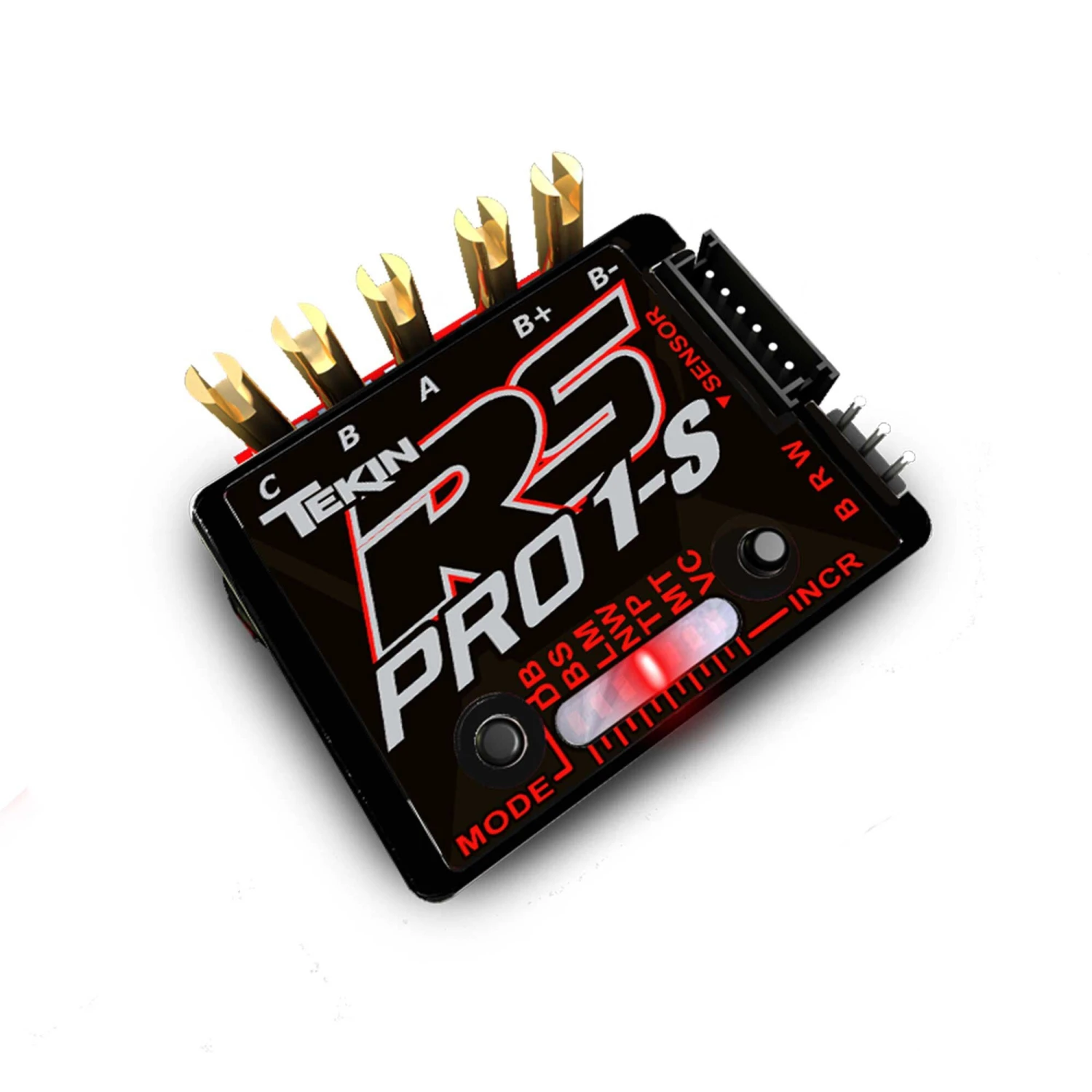

Tekin RS Pro 1S Black Edition BL Sensored/Sensorless ESC TEKTT1161

The Tekin RS PRO 1S Black Edition utilizes both hardware and software advances recently developed for Tekins latest ESC lineup. With its industry-leading Ultra Low Resistance you can be sure that your motor is getting all the power you can give it. More power, smooth control and reliability you can count on: the RS PRO Black Edition is engineered for performance.

The RS PRO Black Edition 1S was specifically designed for 1S 1/12 Scale Spec Classes to take full advantage of the ULR circuit design. ULR FlexWire is included with every Black Edition ESC. Pair the RS PROs with a SPEC-R motor for the ultimate Ultra Low Resistance system.

Features:

• ULR: Ultra Low Resistance Design
• Specifically Designed for Spec & Stock Racing
• QuickTune™ One Touch Programming
• Adjustable Throttle and Brake Frequencies *
• High Voltage Programmable BEC *
• HotWire™ Programming Port *
• Data Logging Capability *
• Sensor Checker
• On-Board Temperature Indicator
• ESC Self Diagnostics with Error Codes
• Fully Proportional Forward/Brake/Reverse
• Brushless and Brushed Motor Drive
• Sensored or Sensorless Operation
• LiPo Safe with Custom Voltage Cutoffs
• Sensor Plug for Precise Commutation
• Lightweight Chassis Design
• HDAC: High Density Copper PCB’s
• Ultra-smooth and Precise Throttle and Braking Control

* requires HotWire™ sold separately.

Specifications:
Controls: Forward/Brake/Reverse
Input Voltage RS Pro 1-S: 1S LiPo ONLY / 4S NiMH-NiCD
Motor Limit Brushless Mode 2S: 36mm Can – 2-Pole
Motor Limit Brushless Mode 3S: 36mm Can – 2-Pole
Motor Limit Brushed 2S: 36mm Can – 540 & 550
Motor Limit Brushed 3S: 36mm Can – 540 & 550
Amperage: 480Amps per phase*
ON Resistance: .000096ohm*
BEC: 6.0 / 7.4V @ 5.5amps
Weight: 1.23oz / 35g
Dimensions: 1.0 x 1.3 x .68in / 24.5 x 33 x 17.25mm
