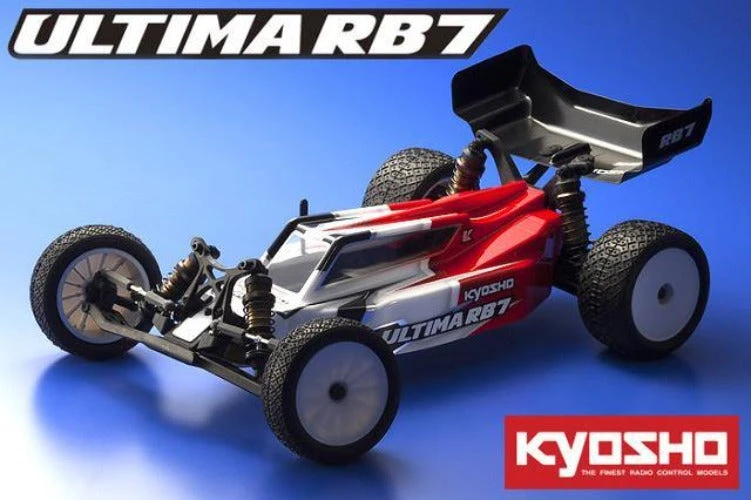

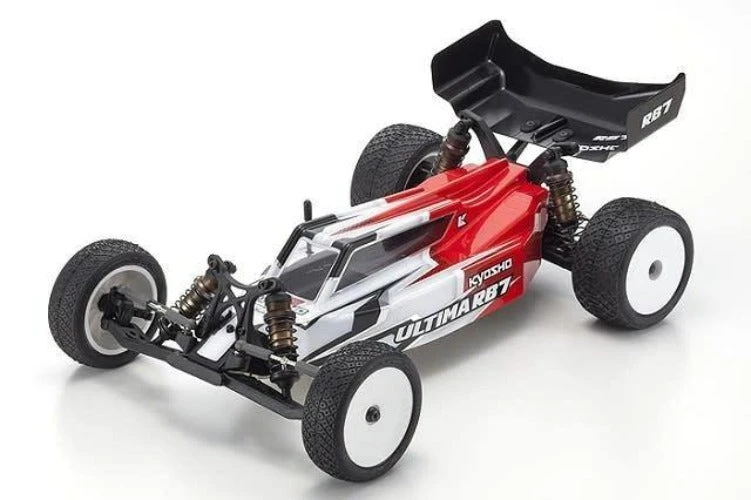

Kyosho (34303B) Ultima RB7 Kit

Based on the ultra low center of gravity of the RB6.6 low-down midship, the RB7 features improved flex characteristics from its thinner, lighter, and 4mm shorter wheelbase main chassis. Combined with a completely new aero body design, high downforce wing, new front and rear suspension arms and revised ackerman steering knuckles, the new RB7 is ready to take on the competition.

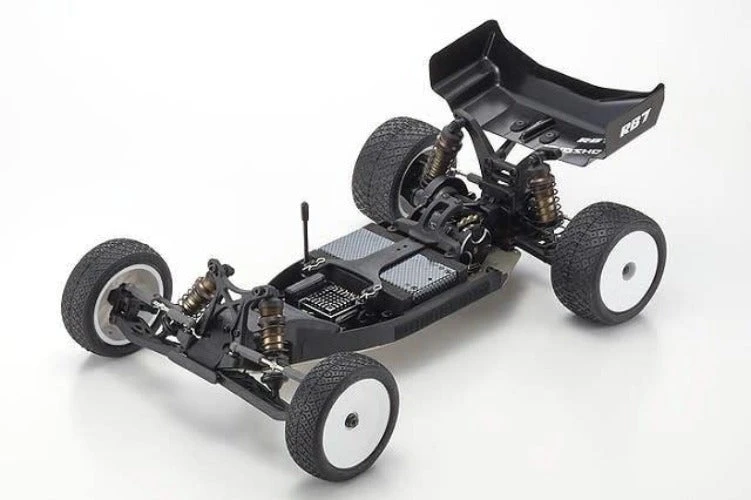

• 4mm shorter, 2.5mm thick, 7075 hard anodized aluminum chassis, delivers faster cornering and increased grip with optimized flex.
• Improved front knuckles/hubs provides better handling with updated ackerman location.

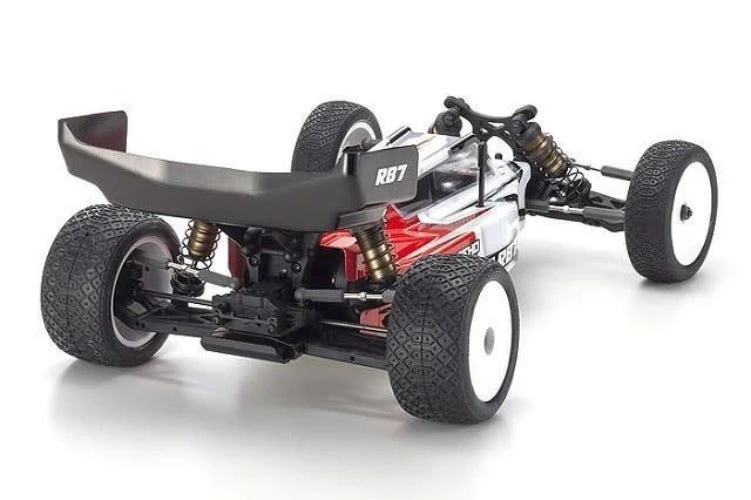

• New body and wing with integrated fin for more traction and stability.
• Gull-wing style front suspension arms for improved response, with optional front sway bar mounting positions.
• Multi-configuration rear suspension arms. (short/long via inserts)
• Aluminum rear suspension holders included in kit.
• Wing is now screw mounted and wing stay has improved durability.

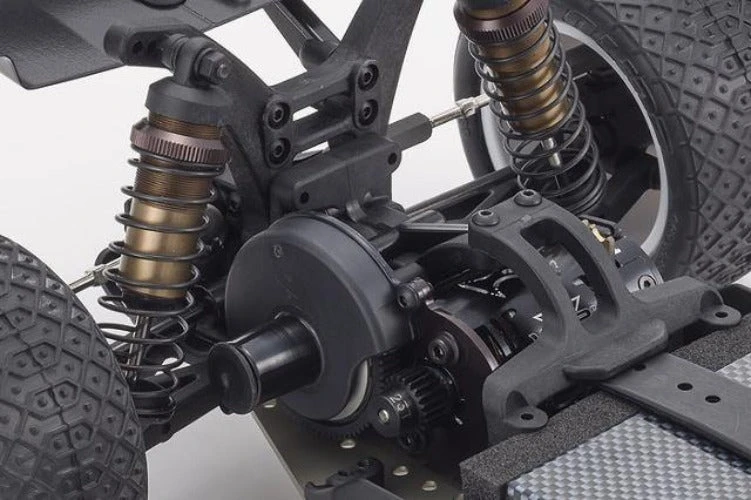

• New design “waterfall” transmission brace.
• Updated ring captured universals for increased reliability.
• Includes lowered spring cups for high traction situations



KIT CONTENTS

• Unassembled kit
• Clear body &wing
• Wheels
• X-GEAR ball diff grease, high graphite grease, shock springs

REQUIRED FOR OPERATION

• 2ch, 1 servo, ESC R/C System
• Motor
• Battery for chassis
• Tires and Inserts
• Battery Charger
• Pinion Gear
• Paint For Body
• Tools

CHASSIS TECHNICAL DATA

• Length:                                   395mm
• Width:                                     249mm
• Height:                                    148mm
• Wheelbase:                            277mm
• Tread (F/R):                            F:221mm / R:201mm
• Gear Ratio:                             2.6:1
• Weight:                                   1550g (approx.)
