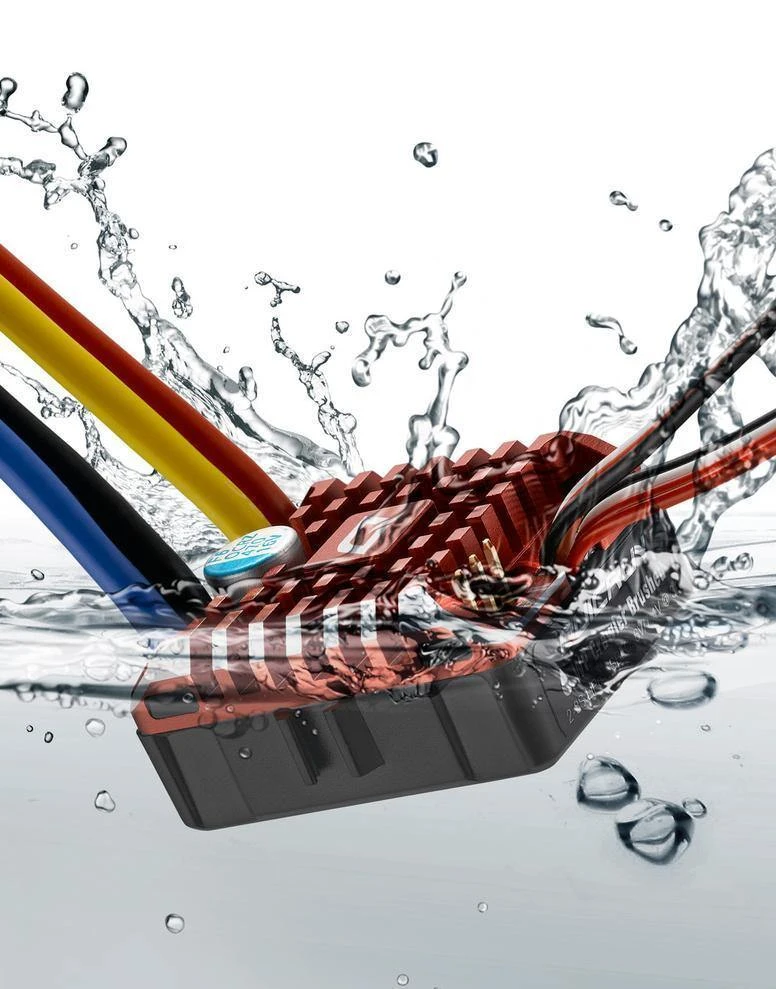

- Water-proof and dust-proof, suitable for all weather races.
- Small size, with built-in capacitor module.
- 100% Waterproof
- 15 programmable parameter items
- PWM Frequency: 1K/2K/4K/8K/16K Adjustable
- Freewheeling (DEO) capability
- Drag brake rate in 9 levels (adjustable)
- Electronic switch
- Aluminum case for great heat dissipation
- Great current endurance capability.Â
- Great built-in BEC output capacity.Â
- Automatic throttle range calibration, easy to use.Â
- Multiple protections:
- Over Voltage Protection
- Low voltage cut-off protection for battery
- Over-heating protection
- Throttle signal loss protection, and much more
- Risk-Free manufacturer’s limited warranty available through Authorized Dealers in North America
What’s in the box?
- ESC
- LED program card
- Bonus accessories (heat sink, etc)
- User’s manual
- Decal
| Â QUICRUN | WP 1080Â Rock Crawler |
| Brushed ESC | BRUSHED ESC |
| p/n | 30112750 |
| Â | Â |
| Waterproof | Yes |
| Dual Mode | No |
| Fwd Cont. / Peak | 80A / 400A |
| Rev Cont. / Peak | 30A / 180A |
| Car Applicable | 1/8 – 1/10Â Rock Crawler and Tank or Boat |
| Motor Limit | Brushed Motors |
| 540/550/775 Series | |
| 2S LiPo or 6S NiMH: ≥10T orRPM<[email protected] | |
| Â | |
| Â | |
| 3S LiPo or 9S NiMH: ≥16T or RPM<[email protected] | |
| Battery | 2-3S LiPo or 5-9S NiMH |
| BEC Output | 6V/7.4V @ 3AÂ |
| (switch mode) | |
| PWM Frequency | Â Adjustable |
| 1K/2K/4K/8K/16K | |
| Wires | 14AWG-200mm w/Â XT60 Connector |
| Size/ Weight | 36.5(L)* 32(W)*18(H) (without fan) |
| External Program Port | External Program Port |
| Available | |
| Programming | LED Program card |
| Cooling Fan | Without cooling fan |
| Weight* | 58.5g |
